Product Description

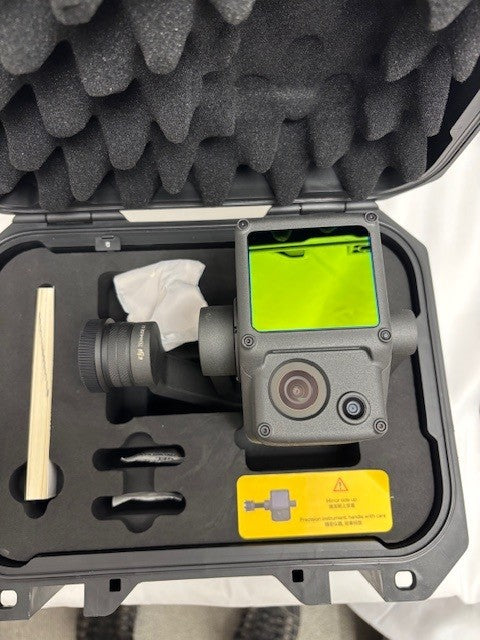

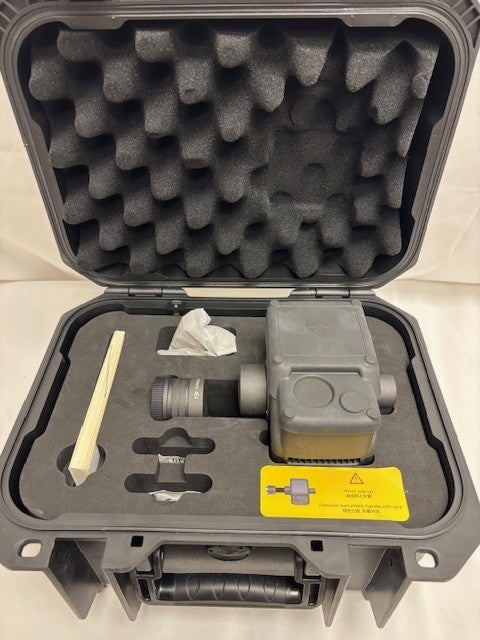

This is a lightly used L1 payload, used for Demo purposes only.

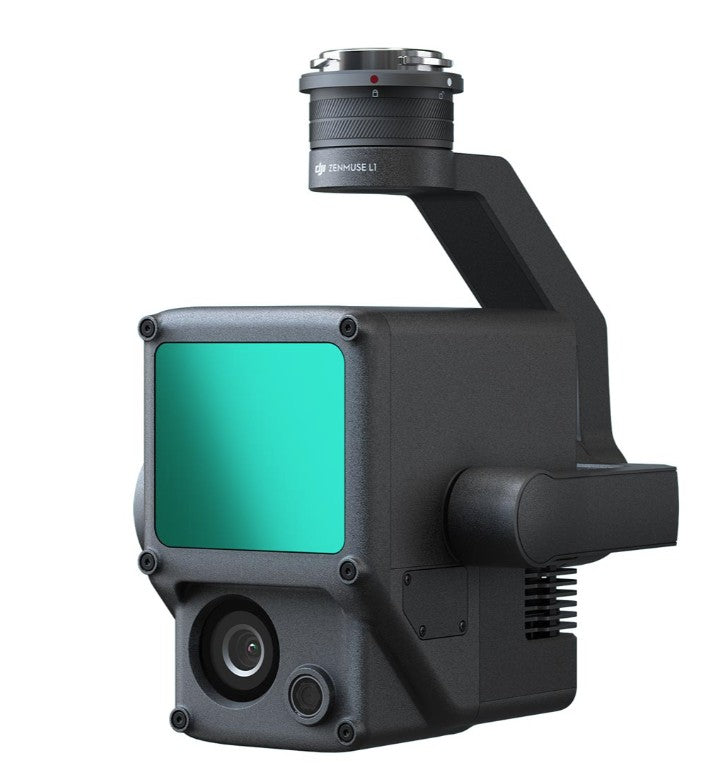

Fully compatible with the DJI Matrice 300 and Matrice 350, the Zenmuse L1 is a compact Lidar + RGB camera for Aerial Surveying.
Livox Lidar module | high-accuracy IMU | 1-inch CMOS RGB camera | real-time 3D data
Digitize without Compromise
-
Exceptional Efficiency - Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.
- Unparalleled Accuracy - Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.
- Ready When You Are - The IP44 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.
Visualize Data as You Fly
- Livox Lidar ModuleIntegrates a Lidar module, an RGB camera, and a high accuracy IMU
- High Efficiency 2km2 covered in a single flight
- High Accuracy Vertical Accuracy: 5 cm Horizontal Accuracy: 10 cm
- Point Rate: 240,000 pts/s
- Supports 3 Returns
- Detection Range: 450 m (80% reflectivity, 0 klx)
- IP44 Ingress Protection Level
- Point Cloud LiveView
