Spectra DG613-5 Pipe Laser Kit

Spectra DG613-5 Pipe Laser Kit

Regular price $4,888.00 USD
Regular price $6,110.00 USD Sale price $4,888.00 USD
Sale Sold out
View full details

Product Description

Compact, Tough and Smart Pipe Lasers

Designed to fit around tighter inverts, the Spectra Precision DG613 delivers the most productive pipe laying experience in the market.  They are extremely rugged and thrive in demanding underground conditions.  Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade.  Spectra's DG613 helps you improve efficiency and provide unprecedented performance and reliability.

The Spectra Precision DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes.  Working in trenches just got easier with the new range of pipe lasers from Spectra Precision.

The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.

The DG613 works over a distance of 500ft providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infrared light in the pipe for up to 500 feet control. For "over-the-top" setups, the remote utilizes radio communications up to a distance of 430 feet.

Flexible power options provide 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. Alkaline batteries can be used directly at the laser without a separate battery pack. An additional car charger is available for work in remote areas.

Large graphical user interface can be seen easily when the laser is in a manhole. All functions are available via graphical menu which makes it simple and easy to use - no secret button pressing and short learning curve means it can be handed to anyone in your crew with little or no training. The same graphical user interface is used at the RC803 remote control.

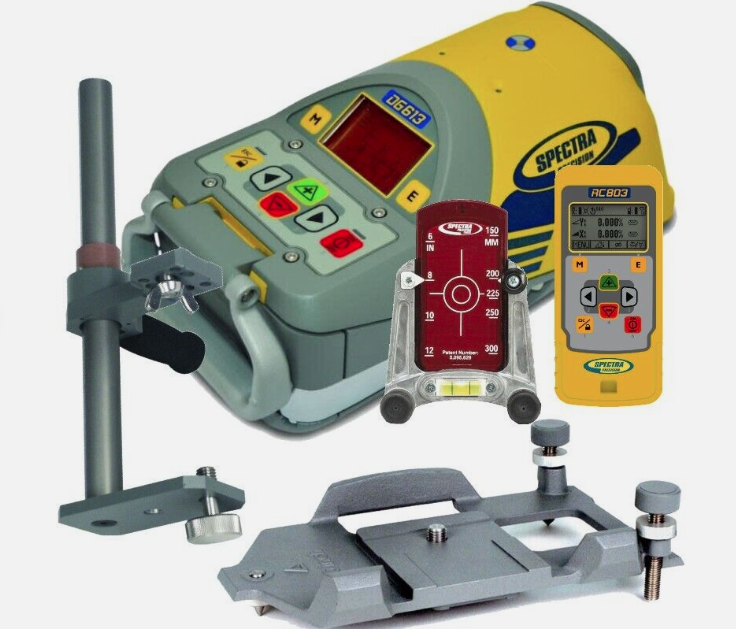

Spectra DG613-5 Includes:

  • RC803 IR/Radio Remote Control
  • Target
  • 8" Invert Plates
  • Large Invert Plate for 10 in., 12 in., or 15 in. pipe diameters
  • Vertical Pole
  • Jobsite Tough Carrying Case
  • NIMH Batteries
  • 110v Battery Charger


  • 500 feet (150m) operating range
  • Complete cross axis compensation for quick set-up and additional control
  • RC803 remote works via radio 430 feet (130m) or infrared 500 feet (150m)
  • -12% to +40% self-leveling range
  • Large, easy-to-use graphical user interface both on-board and on remote control
  • Line alert function notifies user if setup is disturbed
  • Can align the beam up 100% to manhole from the bottom of a deep, short trench
  • Line scan function allows quick second day alignment to center of target
  • Shorter housing for easier setup into tighter inverts
